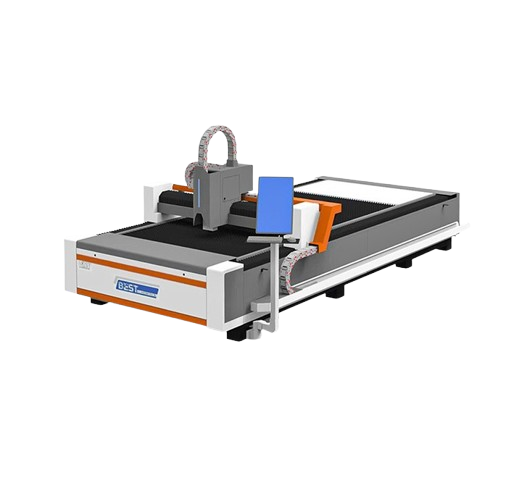

L SERIS FIBER LASER
Fiber Lasertech represents a revolutionary technological breakthrough in modern industrial manufacturing, offering unparalleled precision in cutting, marking, and metal processing. Integrating energy-efficient fiber laser sources, high-speed CNC control systems, and advanced automation, it transforms manufacturing processes to be faster and flawless. From a CEO's perspective, it significantly reduces operational costs, minimizes material waste, and vastly increases production throughput. Its performance is exceptional for precision cutting on metals like stainless steel, aluminum, mild steel, and brass. By ensuring low maintenance costs, long-term durability, and a rapid Return on Investment, Fiber Lasertech serves as a highly profitable strategic asset, driving long-term corporate growth and securing a strong competitive edge in the market.
Technical Parameters
MODEL | BLT-3015 |
Maximum processing range | 1500×3000mm |
X-axis travel | 1500mm |
Y-axis travel | 3000mm |
X / Y axis positioning accuracy | ±0.03mm |
X / Y axis repeats positioning accuracy | ±0.02mm |
X / Y axis maximum moving speed | 80m/min |
X / Y maximum acceleration | 0.8G |
Transmission type | Dual drive rack |
Motor power | X/Y:850W Z:400W |
Working platform load | 700kg |
Enclosed laser protection | No |
Lubrication type | Automatic oiling |
Power available | 1500-6000W |
Dimension | 4450*4197*1860mm |
Main Specification
NO | Name | Brand |
1 | Laser source | Max Fiber Laser Source |
2 | Laser head | Ray tools laser head Switzerland brand |
3 | Machine body | Heavy Duty body with Aluminum 5th generation gantry |
4 | Gear and rack | YYC Taiwan |
5 | Reduce | Japan Shimpo Reduce |
6 | Motor on X, Y axis | AC Servo |
7 | Motor on Z axis | AC SERVO |
8 | Exhaust Smoke System | People Republic of China |
9 | Guide rail | Hiwin, Taiwan |
10 | Electronic Components | Taiwan, /Deluxe/ France, Schneider |
11 | Control system | Switzerland brand Ray tools |
12 | Water chiller | S&A Water chiller |
13 | lubrication | Auto oil pump |
14 | Working Voltage | 380V/50Hz, three phases |
15 | Auxiliary Gas | oxygen, nitrogen, air |
16 | Beam | Integral cast aluminum |
17 | Laser Power | 1500, 2000, 3000, 6000 Available |
